Gravel Grids for driveway

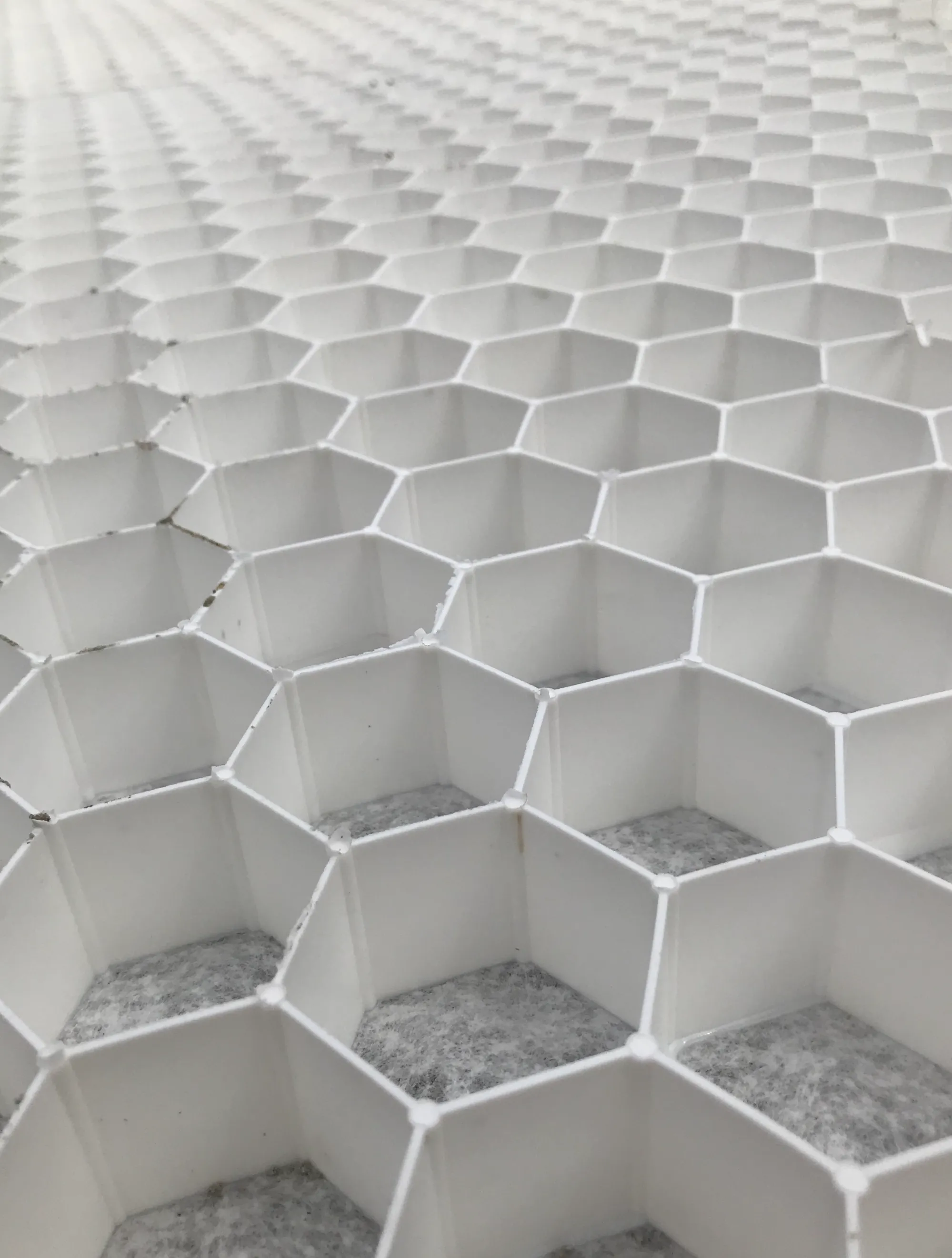

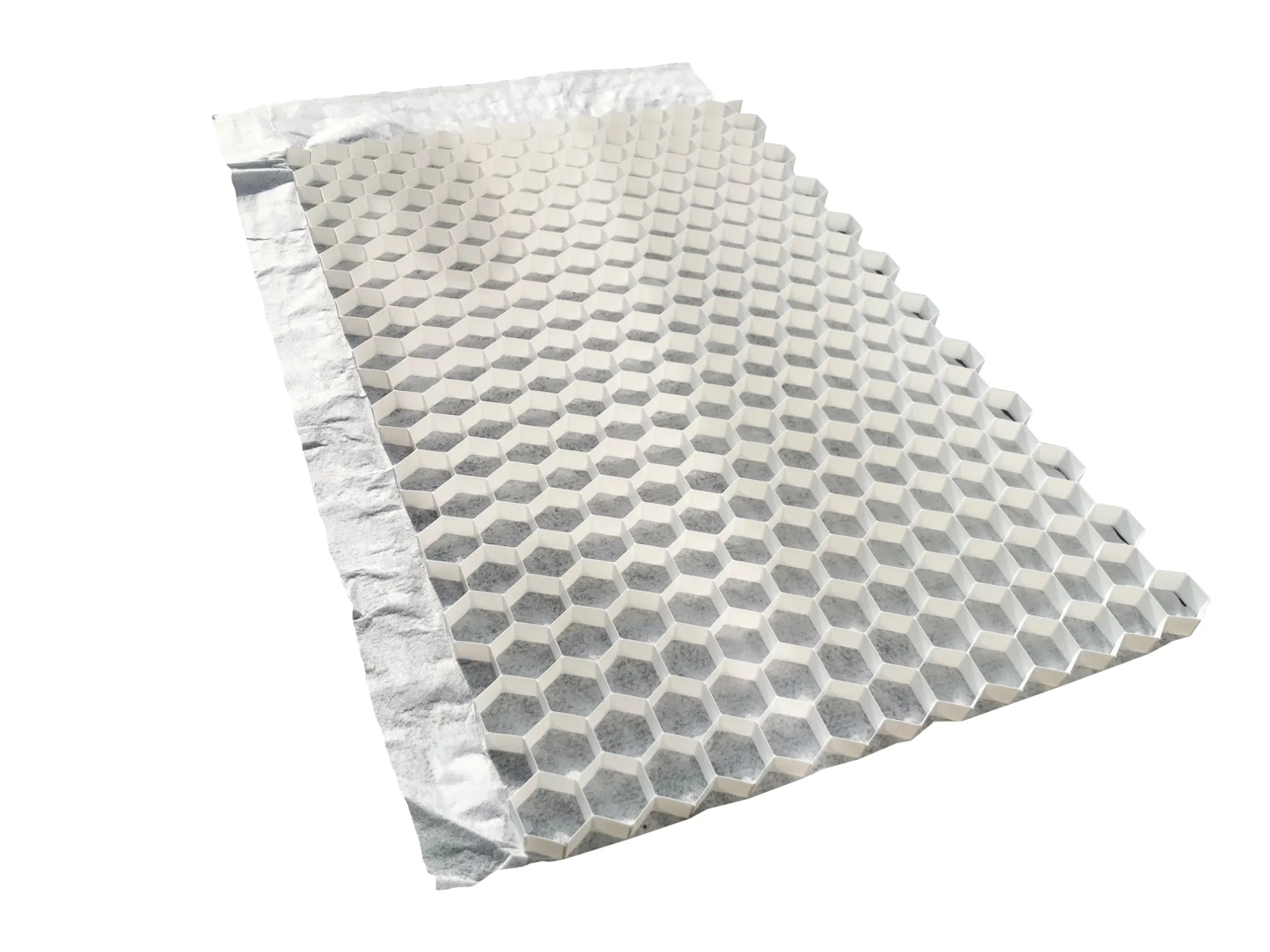

Prodrive 30 with honeycomb structure

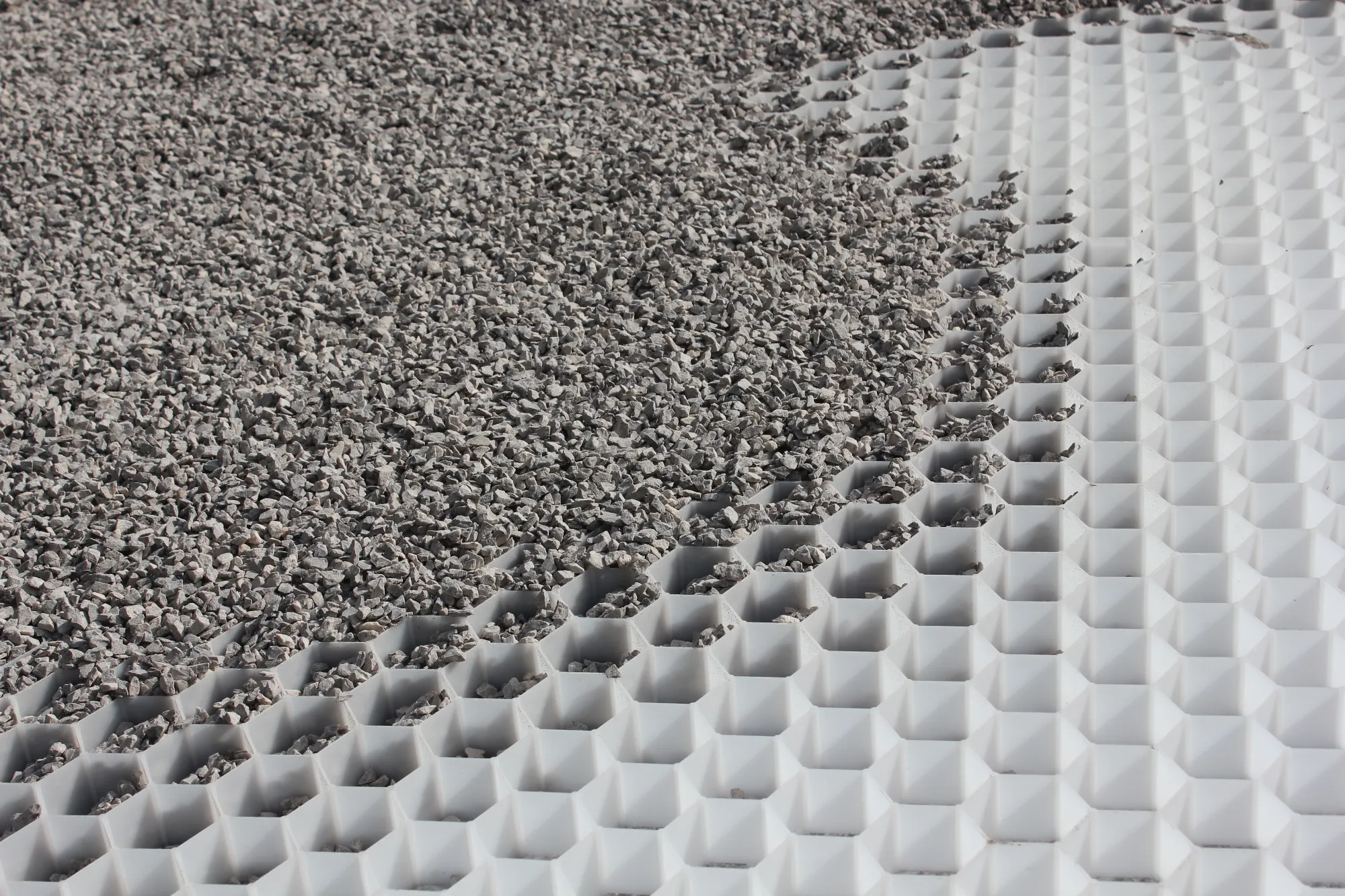

Our Prodrive 30 is suitable for car and light van use it will take up to a 20mm Gravel and has a built in 90gsm membrane on the bottom unlike many others on the market that are only 70gsm
  free draining too; so unlike tarmac and concreate you wont need to install drainage first.

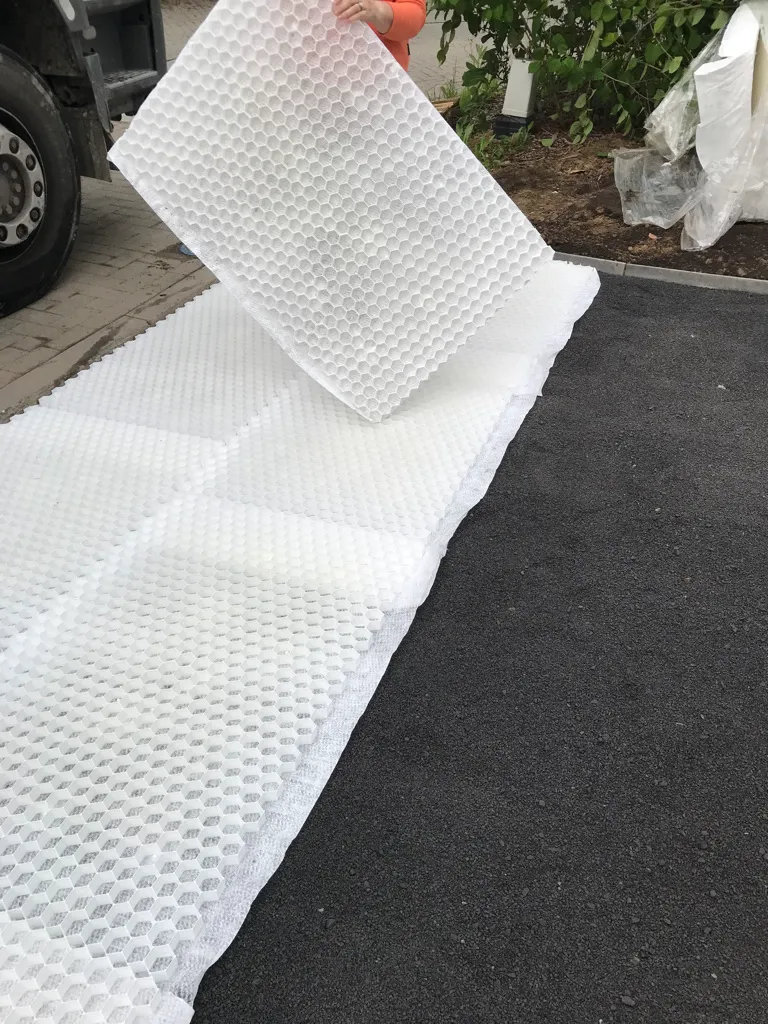

The membrane is attached to the grid during production and they are both made of the same material.
This means that the 2 are chemically bonded to each other and cannot be separated.
Other grids on the market have the membrane glued to them so they can become separated after installation. This can lead to the grids rising to the surface through the gravel.
Our grids are also quite flexible. This allows for some undulations in the ground that the grid will flex to.
Other grids are so rigid that this can cause them to flip up when a car drives over them and they sink into the undulation below.
Prodrive 30 is a recycled material so can be fully recycled without separation of the membrane from the grid.

Specification Details :-
Dimensions 1200x800mm
Height 30mm
Cell Diameter 61mm
Material Recycled polypropylene
UV stabiliser included
Weight/unit +/- 1.14kg
Colour White (796200)
Breaking strain (unfilled) 55t/m2
Breaking strain (filled) 400t/m2
Biological resistance Very high
Chemical resistance Very high

Geotextile properties:
Material Polypropylene
Colour White
Weight 90g/m2
Production method Non-woven, mechanically bounded
O90 value 70 microns

Fully recyclable Yes – without honeycomb/geotextile separation

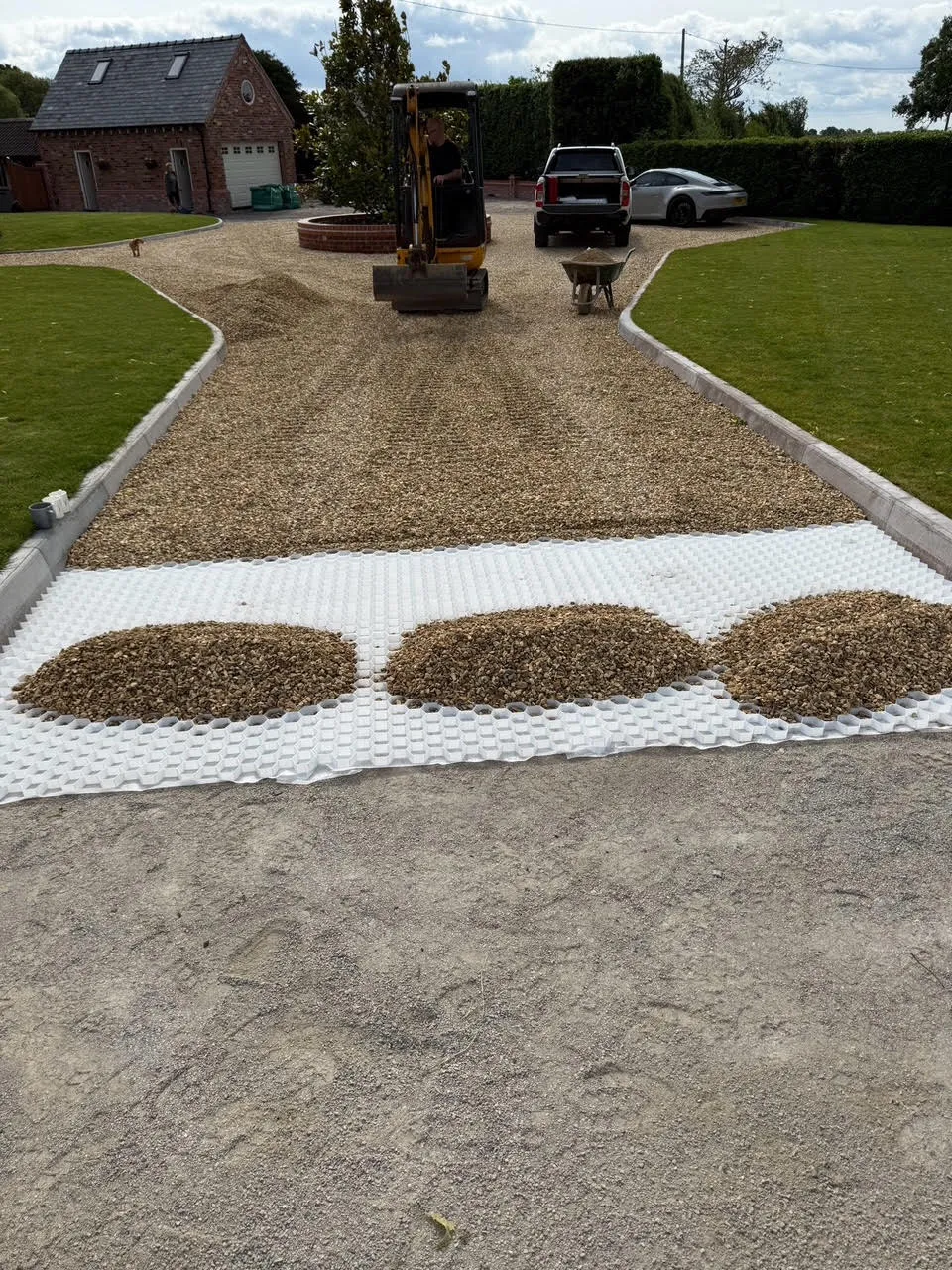

Gravel requirement Approx. 65kg/m2
Maximum gradient 1:10

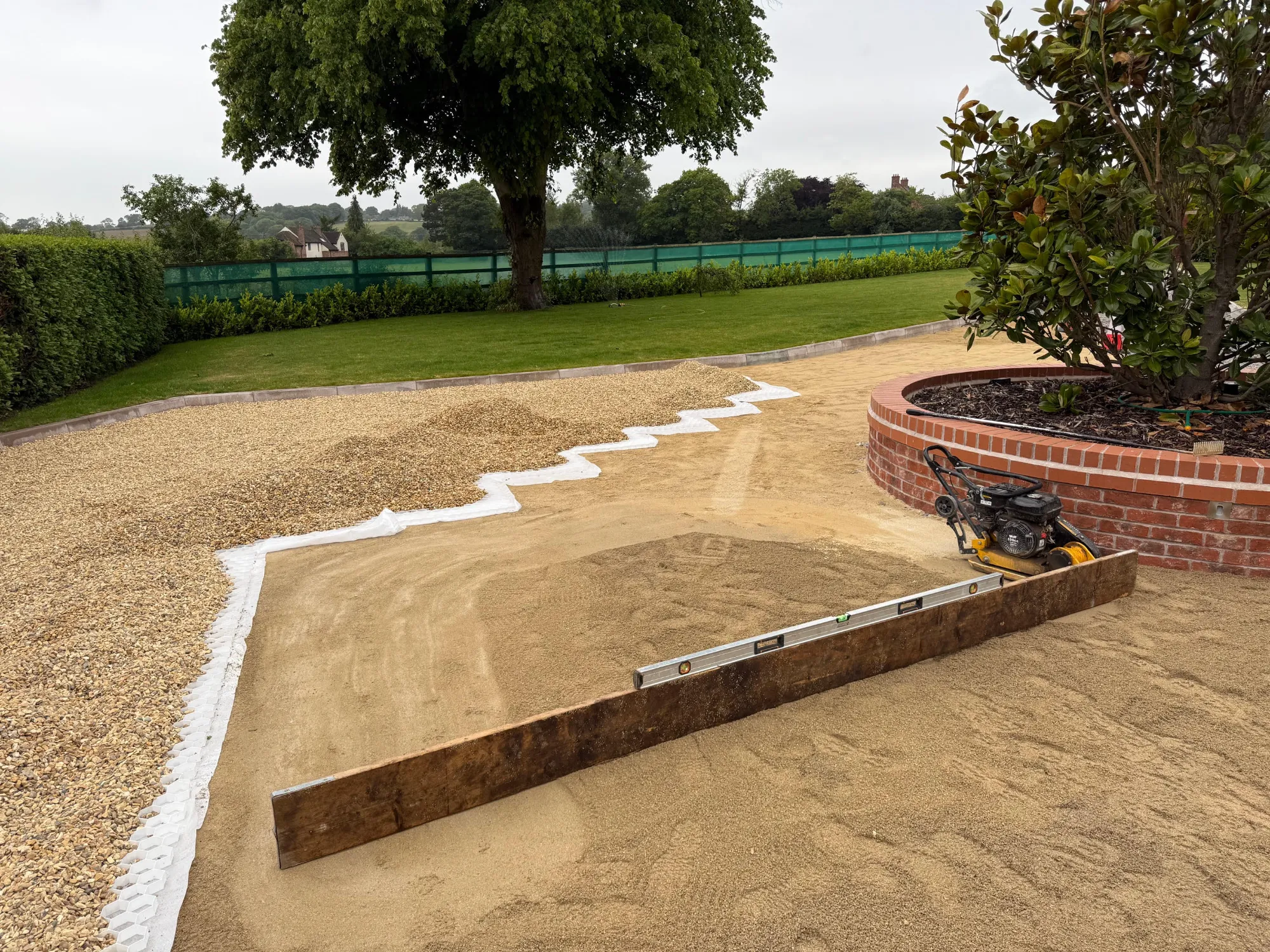

Sub base – Foot traffic Compacted top soil or hardcore & a blinding layer
or
Sub base – Domestic Vehicles 150mm compacted Type 1 hardcore   https://www.topsoil4u.co.uk/crushed-limestone_type-1-mot.html
  capped off with a blinding layer https://www.topsoil4u.co.uk/crushed-stone-6mm-to-dust-bag.html

Cutting equipment Hand saw, reciprocal saw or angle grinder
